Custom shaped wire is used in many applications where standard round wire cannot provide the required performance, fit, or geometry. By changing the cross-sectional shape of the wire, manufacturers can achieve better contact, improved strength, controlled spacing, or a more efficient use of material.
At ERQI Wire, we manufacture custom shaped wire for customers who need a specific wire profile rather than a standard round wire. Our shaped wire can be produced in different profiles, sizes, materials, and tolerances according to the application and drawing requirements.
What Is Custom Shaped Wire?

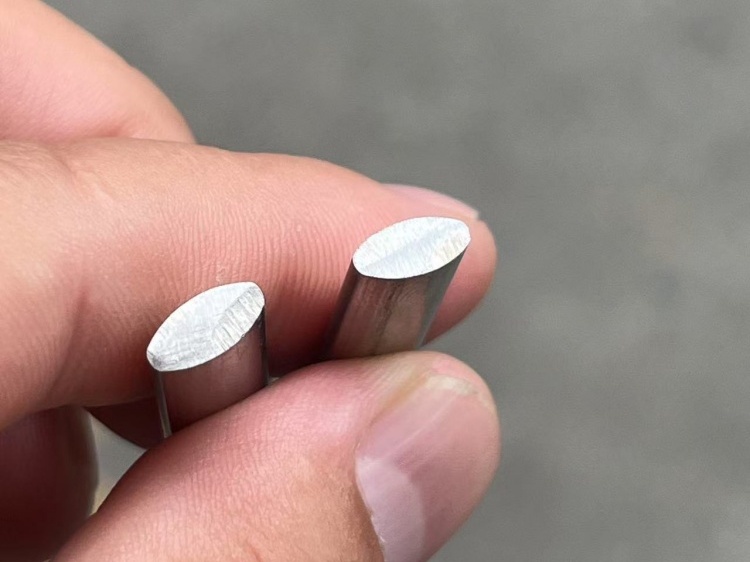

Custom shaped wire is wire that has been formed into a specific cross-sectional profile instead of the conventional circular shape. Common profiles include triangular wire, wedge wire, flat wire, square wire, rectangular wire, D-shaped wire, and other customer-designed sections.
The shape of the wire is normally determined by the final application. For example, wedge-shaped wire is widely used in screening and filtration because its profile can provide a controlled opening between adjacent wires. Flat or rectangular wire may be selected when a wider contact surface or a compact construction is required.
The important point is that custom shaped wire is not simply a different-looking wire. The profile directly affects how the wire performs in the finished product.
Why Choose Custom Shaped Wire?
In many industrial products, the geometry of the wire is part of the design. A standard round wire may work for general purposes, but it may not provide the exact contact area, opening, strength, or installation characteristics required by a specialized component.
Custom shaped wire allows the wire manufacturer and product manufacturer to work from the actual application requirements.
Depending on the design, a shaped wire can provide:
- A controlled and repeatable cross-sectional profile
- Better contact with mating components
- More efficient use of material
- A specific opening or spacing between wires
- Improved mechanical stability in assembled products
- Compatibility with existing production equipment
- More flexibility for specialized industrial applications
For this reason, custom shaped wire is often used in products where dimensional accuracy and consistency are more important than simply purchasing standard wire.
Custom Shaped Wire Materials
The material selected for a shaped wire depends on the working environment and the requirements of the finished product.
Stainless steel is one of the commonly used materials for custom shaped wire because of its corrosion resistance and mechanical properties. Different stainless steel grades can be considered depending on the application.
Carbon steel and other metal materials can also be used when strength, cost, conductivity, or other performance requirements are more important.
Before production, the material should be selected together with the required wire profile, dimensions, mechanical properties, surface condition, and application environment. This helps ensure that the final wire is suitable for the customer's manufacturing process.
Applications of Custom Shaped Wire
Custom shaped wire is used across a wide range of industries.
One important application is filtration and screening. Wedge wire and triangular wire are commonly used in well screens, water treatment screens, filter elements, and other screening products. The shaped profile helps manufacturers control the slot opening and maintain a consistent screening structure.
Custom shaped wire can also be used in industrial filters, separation equipment, architectural products, heating and ventilation components, electrical and motor-related parts, and various fabricated metal components.
In some applications, the customer may already have a finished-product drawing but no standard wire specification. In this situation, the shaped wire needs to be developed around the finished product rather than selected from a standard catalog.
Custom Shaped Wire for Wire-Wrapped Screens
Wire-wrapped screens are a typical example of where wire geometry matters.
The profile of the wire determines the contact area between the longitudinal support rods and the wrapping wire, as well as the opening formed between adjacent wires. A suitable shaped wire can help achieve a stable screen structure and a consistent slot opening.
Triangular wire and wedge wire are therefore widely considered for screen manufacturing.
For customers producing well screens, water screens, intake screens, or industrial screening elements, the wire dimensions should be matched to the required slot size, support structure, winding process, and operating conditions.
Custom Production Based on Drawings
Many customers looking for custom shaped wire do not need a standard product. They need wire made to a drawing.
A typical custom shaped wire project may involve the following information:
- Cross-sectional drawing
- Wire width and height
- Corner or radius requirements
- Material grade
- Dimensional tolerance
- Surface requirements
- Coil or straight-length requirements
- Mechanical properties
- Application and production process
Providing a drawing is the easiest way to evaluate a custom wire requirement. If a finished drawing is not available, a sample or basic dimensional information can also be used to discuss the required profile.
Why Dimensional Consistency Matters
For shaped wire, dimensional consistency is especially important because even a small variation in the profile can affect the customer's production process.
For example, in a wire-wrapped screen, variation in wire dimensions can influence the final slot opening and the winding result. In other assemblies, the profile may need to fit accurately into a groove, contact surface, or forming tool.
Therefore, custom shaped wire production requires attention to profile dimensions, tolerances, surface quality, straightness where applicable, and consistency from coil to coil.
Choosing a Custom Shaped Wire Manufacturer
When selecting a supplier, it is useful to look beyond the basic material and wire size.
A suitable supplier should be able to understand the customer's application and convert the required profile into a stable production process. Communication about drawings, tolerances, material, packaging, and inspection requirements is also important.
For international customers, consistent production and clear technical communication are particularly important. A supplier that can provide samples before mass production can make the development process easier and reduce unnecessary production risks.
Custom Shaped Wire from ERQI Wire
ERQI Wire focuses on the production of shaped metal wire for industrial applications. We can work with customers on custom wire profiles, including triangular wire, wedge wire, flat wire, rectangular wire, and other non-standard shapes.
Our goal is not to offer one standard wire size for every customer. Instead, we work from the customer's drawing, sample, dimensions, and application requirements to develop a suitable wire specification.
If you are looking for custom shaped wire for filtration, screening, machinery, electrical components, or another industrial application, send us your drawing or required dimensions. Our team can review the requirements and discuss the appropriate material, profile, tolerance, and production method.
Contact ERQI Wire
For custom shaped wire inquiries, please contact ERQI Wire at info@erqiwire.com.
Website: erqiwire.com
Whether you need a small trial order or regular production, providing the wire profile and application details will help us understand your requirements and prepare a suitable quotation.
