Triangular & Wedge Wire Drawings
Our core sections with drawing code, size and key parameters. The full library also carries shaped-wire sections for reference.
About ERQI

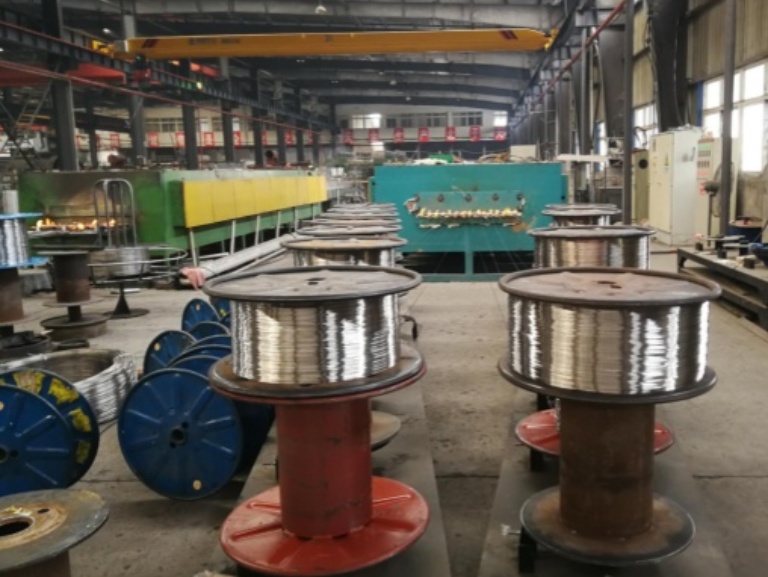

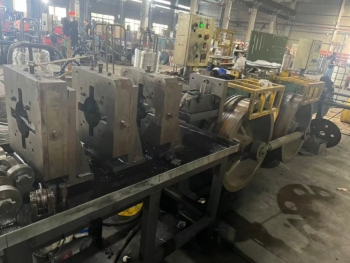

Hubei ERQI New Materials Co., Ltd. is a cold-drawing wire manufacturer based in Xiangyang, Hubei, China. We specialise in stainless triangular wire and wedge wire for screens and filtration, backed by four-roll mills and bright annealing lines. Shaped wire and custom profiles are supplied alongside for customers who need both from one source.

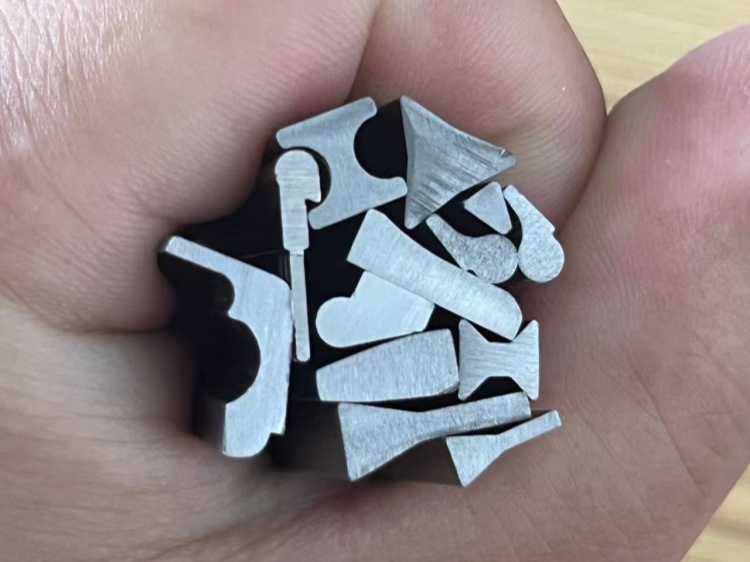

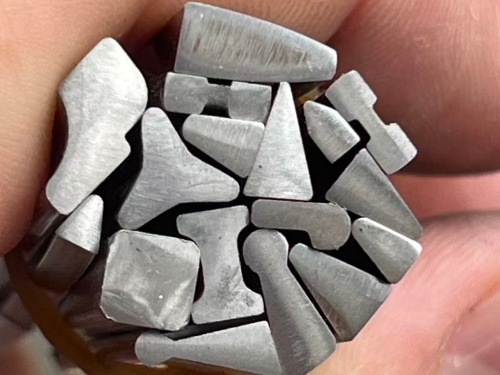

- Custom cross-sections drawn to your drawing
- Stable quality with full size inspection
- Fast sampling and short lead time
- Export experience to Europe and North America
Applications

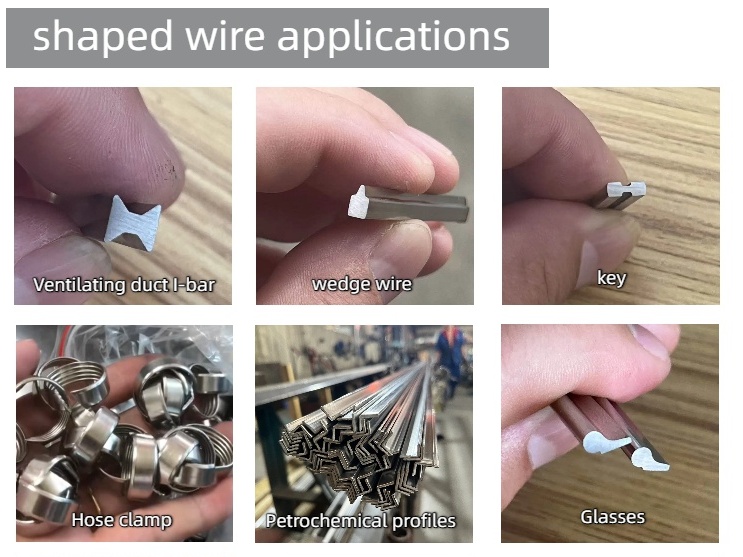

Where triangular wire and wedge wire do the work — oil screens, wedge wire screens, water wells and filter elements — plus shaped wire in automotive, electronics and architecture.
Filtration & Separation

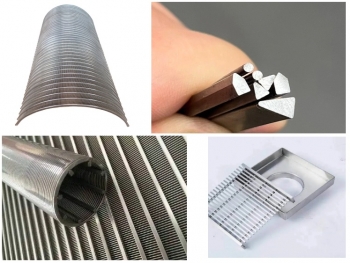

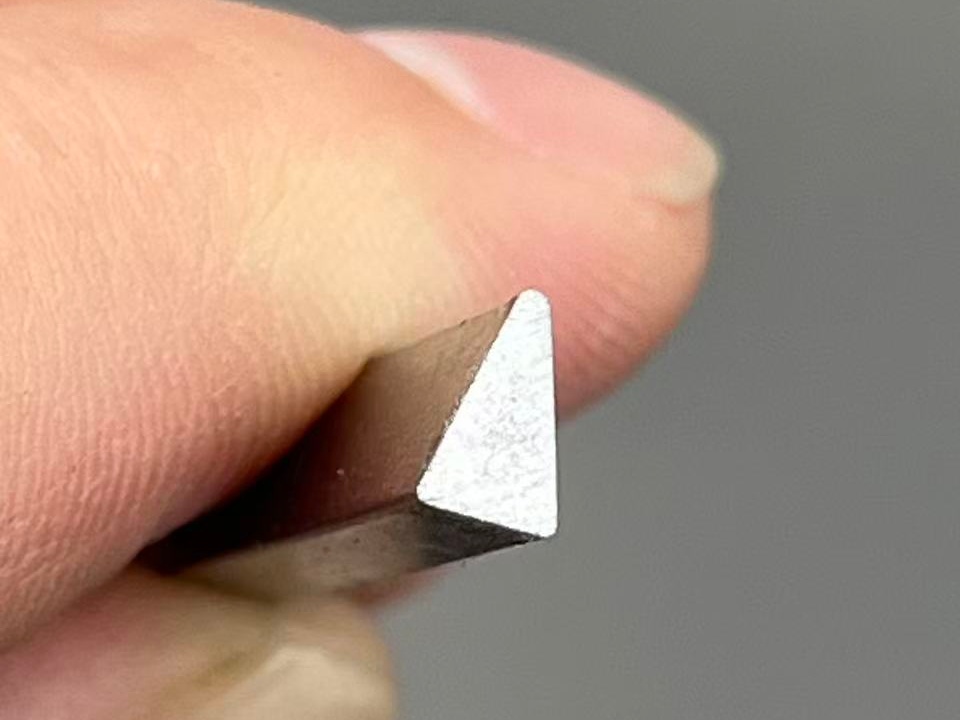

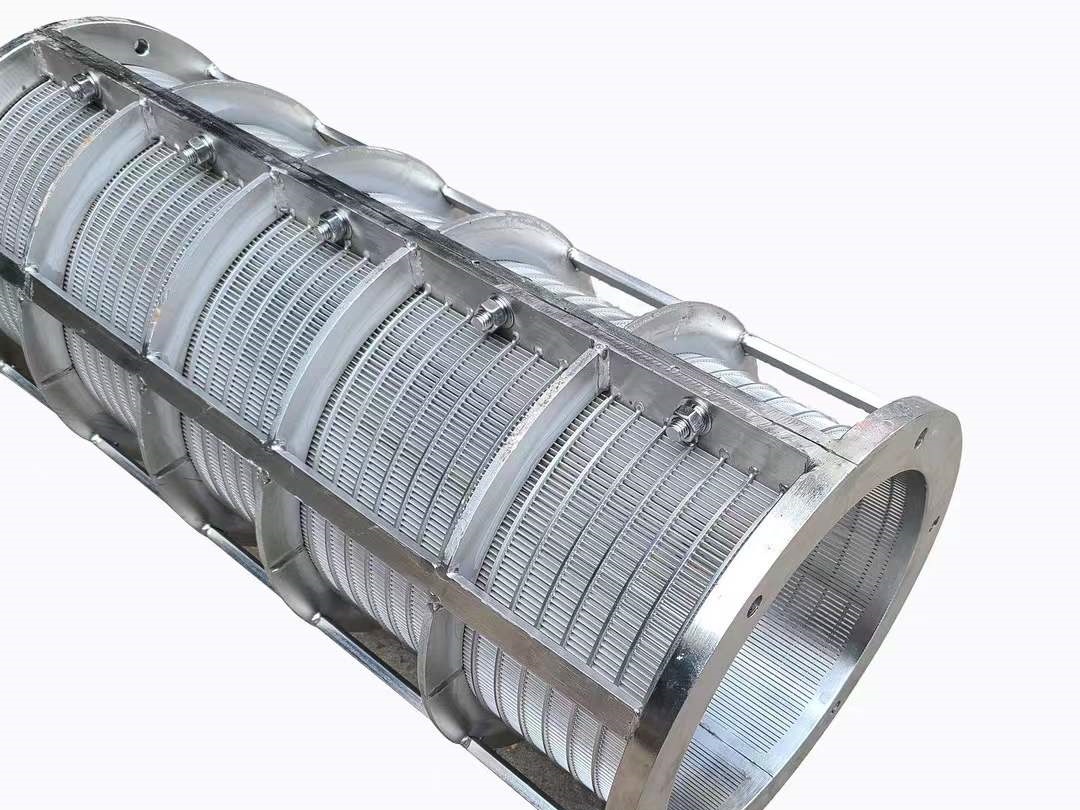

Wedge wire and V-profile sections for oil screens, screen laterals, water wells and filter elements.
View applicationMining & Sieving
Triangular wire and wedge wire baskets for ore screening and dewatering.
View applicationAutomotive
Shaped wire for seals, structural parts and trim components.
View applicationElectronics
Copper and square wire for conductive and connector parts.
View applicationArchitecture
Aluminium and stainless profiles for facades, frames and decoration.
View applicationMedical
Fine shaped wire for instruments and precision devices.
View applicationNews & Insights
Latest from ERQI — production, industry and technical notes.
-
Technical
Wire Wrapped Screens or Slotted Liners: Which One Does the Well Need? | ERQI WIRE
Slotted liners cost a fraction of wire wrapped screens and fail in specific, predictable ways. The four well conditions that decide between them, and what each …
-
Technical
Choosing Slot Size on Oil Well Screens: From Formation Sand to Slot | ERQI WIRE
Slot size is a sand-retention decision made from a sieve analysis, not a catalogue pick. How D10/D50/D90 map to a slot, what changes when a gravel pack is invol…
-
Technical
809C and 202B: The High-Manganese Alloys Behind Wear Screens | ERQI WIRE
809C (10Cr21Mn16NiN) and 202B (12Cr18Mn8Ni5N) replace nickel with manganese and nitrogen. Why that makes them hard, non-magnetic and cheap, and where the trade …
Ready to start your project?
Send us your drawing or sample — we reply within 24 hours on working days.
