Shaped wire is used when standard round wire is not the right fit for a product or manufacturing process. By changing the cross-sectional shape of the wire, manufacturers can achieve a specific contact surface, opening, strength direction, orientation, or assembly fit. Shaped wire is available in many profiles—flat, square, rectangular, triangular, wedge, half-round, trapezoidal, and fully custom shapes—and the right profile depends on the requirements of the finished product.
Shaped wire, also known as profile wire or shaped metal wire, is wire manufactured with a non-round cross-section. Instead of a circular section, it can be produced with a flat, square, rectangular, triangular, wedge, half-round, trapezoidal, or customer-specific profile, selected according to the requirements of the finished component.
For example, flat wire provides a wider contact surface where installation space is limited. Square and rectangular wire provide stable positioning and predictable contact. Triangular and wedge profiles are used where a defined opening or specific contact geometry is required. For non-standard applications, the wire profile can be manufactured according to a technical drawing or sample.
Round wire suits many general applications, but it is not always the most practical choice when a product has specific design requirements. A shaped wire can provide:
The purpose of shaped wire is not simply to create a more complicated profile—the profile should solve a specific problem in the customer's application.
There is no single standard list of shaped wire profiles, because manufacturers can produce custom sections for different applications. However, several profiles are widely used in industrial products.
Flat wire has a wider and thinner cross-section than round wire. It is often selected when a larger contact surface is required or installation space is limited. Typical uses include springs, clips, electrical components, automotive parts, and other formed products. Width, thickness, edge condition, and corner radius can be specified according to the application.
Square wire has four defined sides and is useful where stable orientation or contact is required. Compared with round wire, its flat sides provide more predictable contact and help prevent unwanted rotation. It is used in springs, mechanical components, tools, fasteners, and other industrial products.
Rectangular wire is similar to square wire but with different width and height dimensions—useful when a component requires a specific width-to-thickness ratio. Applications include springs, rings, mechanical and electrical parts, and structural components where space and contact area need to be controlled.
Triangular wire—also called V-shaped wire or triangle wire—is one of the most important shaped wire profiles for screening and filtration. It is widely used in wedge wire screens, well screens, water filtration systems, and industrial screening equipment. Its geometry creates controlled openings between adjacent wires; the actual slot size depends on the wire dimensions, winding or welding method, and support structure.
Wedge wire has a tapered, wedge-shaped cross-section and is closely associated with screening and filtration equipment, where it can serve as profile wire or support wire depending on the screen design. Wedge wire screens are used in water treatment, well screening, industrial filtration, and separation equipment. For these applications, slot opening, wire size, support arrangement, welding method, and open area all need to be considered together with the wire profile.
Half-round wire has one flat side and one curved side—useful when a component needs a flat mounting surface while keeping a rounded external surface. Typical applications include guides, reinforcement components, decorative products, seals, and specialized mechanical parts.
Trapezoidal wire has a four-sided cross-section with angled sides, offering a different balance of contact area, strength, and available space compared with square or rectangular wire. It is used in certain spring, mechanical, screening, and industrial applications.

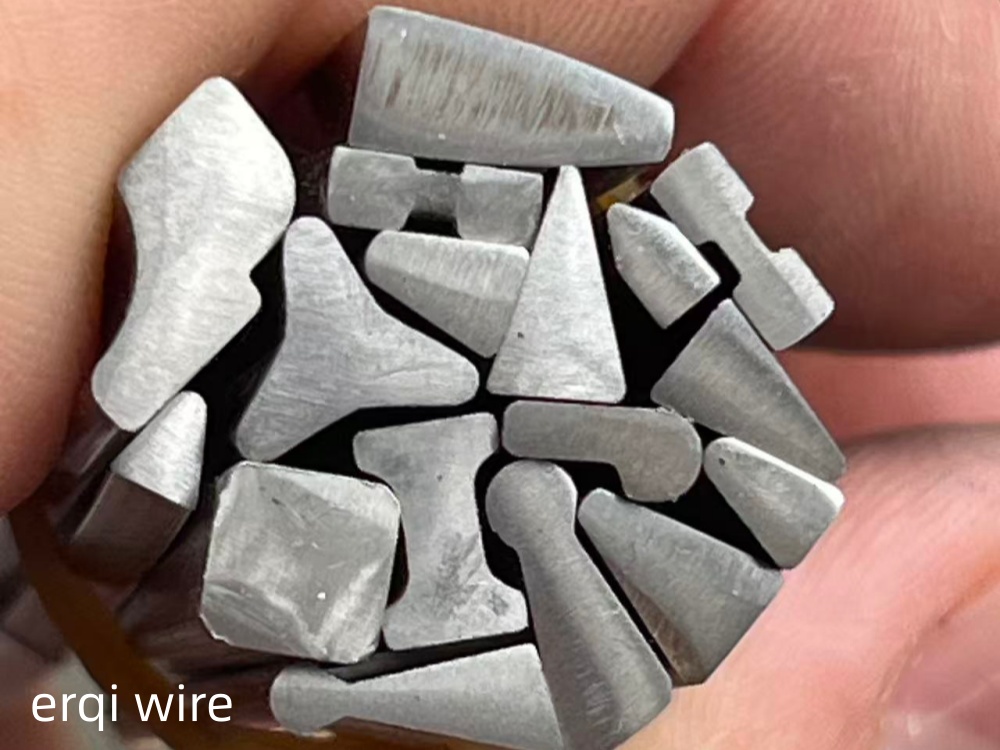

Some applications cannot use a standard profile, and the wire is designed around the customer's product. Custom profiles include D-shaped, T-shaped, U-shaped, grooved, asymmetrical, special triangular, special wedge, and other drawing-based geometries, normally developed from a cross-sectional drawing, sample, or detailed dimensional requirements.
The wire profile determines the geometry, while material selection determines the mechanical and environmental properties. The right material depends on strength, corrosion resistance, temperature, conductivity, forming requirements, surface condition, and the intended application.
Stainless steel is widely used for shaped wire because of its corrosion resistance and mechanical properties. Common grades include 304, 316, and 316L, depending on the application. Stainless shaped wire is used for filtration, water treatment, well screens, industrial equipment, food processing and chemical equipment, automotive components, and general industrial applications.
Carbon steel is an option when strength and cost are the main factors. Depending on grade and heat treatment, it is used for mechanical components, springs, structural parts, and other industrial products.
Spring steel is used when the finished component requires high strength and repeated elastic deformation. Flat, rectangular, square, and other profiles can be produced for specialized spring designs.
Depending on the application and production capability, shaped wire can also be manufactured from copper alloys, nickel alloys, aluminum alloys, and specialty materials.
Triangular wire and wedge wire are the key profiles for filtration and screening: wedge wire screens, well screens, water screens, industrial filter elements, separation equipment, intake screens, and water treatment systems.
Profile wire is used in screening and filtration products for oil and gas service. For demanding environments, stainless steel and other suitable alloys are selected according to corrosion, temperature, pressure, and mechanical requirements.
Water treatment equipment requires screening and filtration components with controlled openings and good corrosion resistance. Triangular wire and wedge wire are used to manufacture screen tubes, panels, and other filtration structures.
Shaped wire is used in automotive components where specific geometry, strength, forming characteristics, or dimensional accuracy is required—springs, retaining components, clips, guides, and other formed metal parts.
Flat, rectangular, and custom wire profiles provide controlled contact surfaces and specific geometries for electrical components. Material selection is particularly important where conductivity, corrosion resistance, or repeated contact is involved.
Custom shaped wire is also used in machinery, tools, equipment, agricultural components, and specialized mechanical assemblies.
Choosing shaped wire should start with the function of the finished product rather than the wire itself:
For non-standard applications, the easiest way to communicate the requirement is a cross-sectional drawing showing:
It is also helpful to provide the final application, estimated order quantity, delivery form, and any special inspection requirements. A sample can be useful when a complete drawing is not available.
Different profiles may require different processes. Depending on material and profile, production can involve drawing, cold rolling, forming, sizing, and straightening, or a combination of these:
Raw Material → Wire Preparation → Profile Forming → Sizing → Inspection → Coiling or Straightening
Dimensional control is particularly important for custom shaped wire. Width, height, corner radius, profile geometry, surface condition, and consistency between production batches may all need to be controlled. In suitable applications, starting from a shaped wire instead of machining round wire reduces secondary processing and makes production more consistent.
Shaped wire is metal wire manufactured with a non-round cross-section, such as triangular, wedge, flat, square, rectangular, half-round, or a custom profile.
Common types include flat wire, square wire, rectangular wire, triangular wire, wedge wire, half-round wire, trapezoidal wire, and custom profile wire.
Depending on the application and manufacturing capability, shaped wire can be produced from stainless steel, carbon steel, spring steel, and various other metal alloys.
Triangular wire is commonly used in filtration and screening products, including wedge wire screens, well screens, water treatment screens, and industrial filter elements.
Wedge wire is used in screening and filtration structures where a controlled opening or specific support geometry is required.
Yes. Custom shaped wire can be developed according to a cross-sectional drawing, sample, dimensions, material, and tolerance requirements.
A cross-sectional drawing or sample, material grade, dimensions, tolerances, surface requirements, quantity, delivery form, and final application are all useful for evaluating a shaped wire project.
Shaped wire is not limited to one profile or industry. From flat and rectangular wire to triangular, wedge, and fully customized sections, different profiles are developed to solve different engineering and manufacturing requirements. The right shaped wire depends on the relationship between profile, material, dimensions, tolerance, manufacturing process, and final application—and working directly from a drawing or sample is the most effective way to develop a suitable custom profile.
