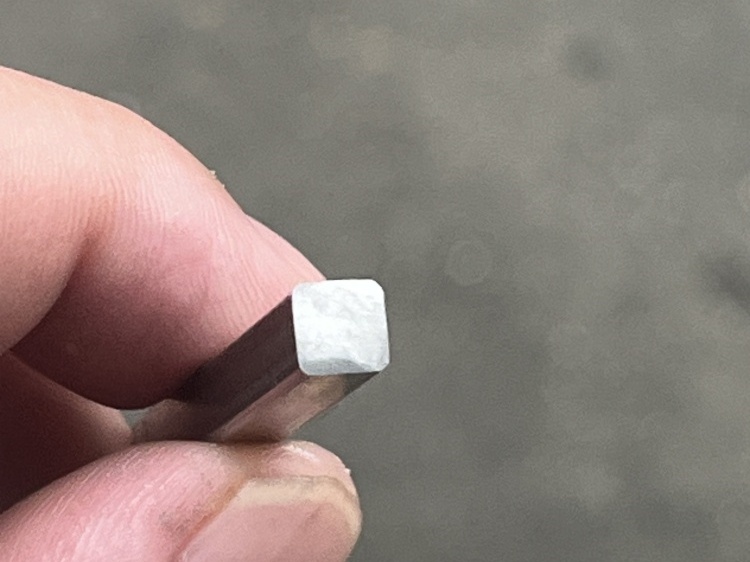

Stainless Square Wire 4×4mm
Cold-drawn stainless square wire, 4×4 mm, with sharp or radiused corners. Holds orientation in a slot, for fasteners, frames, grilles and trim.
Stainless Square Wire 4×4mm
Cold-drawn stainless square wire, 4×4 mm, with sharp or radiused corners. Holds orientation in a slot, for fasteners, frames, grilles and trim.
| Material | 304 / 316L / 430 stainless steel |
|---|---|
| Size range | 4 mm × 4 mm square |
| Typical application | Fasteners, frames, grilles, trim |
| Cross-section | Square — also drawn to your drawing |
| Surface | Bright drawn, as required |
| Packing | Coil, spool or straight length |
Square wire is what you reach for when a part has to sit in a fixed orientation and stay there. Two flat faces at right angles give a corner that locates the part in a slot or a moulded pocket, so it cannot spin the way round wire does.
Ours is cold-drawn from 304, 316L or 430 stainless and held to ±0.02 mm across the flats. Corners come sharp for a tight fit into a machined groove, or lightly radiused when the wire is handled or coated and a sharp edge would catch. If the part is a fastener, a frame or a grille bar, square 4×4 is a common starting size.
Specifications
| Material | 304 / 316L / 430 stainless steel |
|---|---|
| Section | 4 mm × 4 mm square |
| Tolerance | ±0.02 mm across flats |
| Corners | Sharp, or radiused on request |
| Surface | Bright-drawn, or annealed |
| Supply | Coil, straight lengths, or cut to size |
| Use | Fasteners, frames, grilles, trim bars |
Square and flat wire solve different problems — the section guide sets them side by side. For the full range see shaped wire, or send your drawing and we will confirm the size and corner radius.
